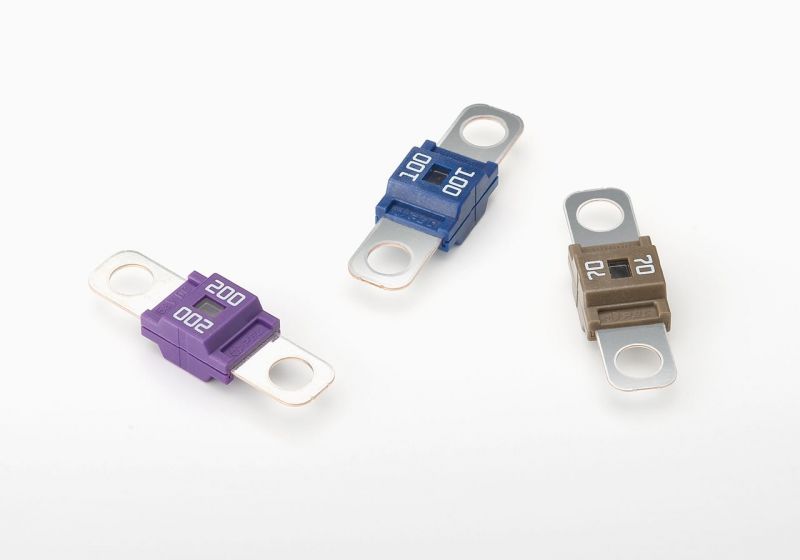

SBFW-L (M6)
General Specification
- Rated Voltage
- DC58V
- Breaking Capacity
- 1000A
- Recommended Torque
- 6.0±1
- Operation Temperature
- -40℃ - 120℃
- Insertion Force
- -
- Extraction Force
- -
- Standard Packaging
- 2,000
- Standard
- ISO8820-5
1 Please contact us for the details of operating temperature.
2 Except for the breaking capacity
Time-Current Characteristic:All ratings
| % of Ampere Rating(A) | Operating Time | |
| MIN | MAX | |
| 100% | 100 hrs. | - |
| 110% | 4 hrs. | - |
| 150% | 90 sec. | 3600 sec. |
| 200% | 3 sec. | 100 sec. |
| 300% | 0.3 sec. | 3 sec. |
| 500% | 0.1 sec. | 1 sec. |
The fuse characteristic may change depending on the conditions of use.
Product Lineup
| Ampere Rating(A) | Part Number | Housing Colors | Resistance Value | Voltage Drop |
| 30A | 3338 | Orange | 2.11 mΩ | 86 mV |
| 40A | 3348 | Green | 1.4 mΩ | 77 mV |
| 50A | 3358 | Red | 1.18 mΩ | 73 mV |
| 60A | 3368 | Yellow | 0.89 mΩ | 71 mV |
| 70A | 3378 | Brown | 0.72 mΩ | 66 mV |
| 80A | 3388 | White | 0.47 mΩ | 51 mV |
| 100A | 3319 | Blue | 0.41 mΩ | 58 mV |
| 125A | 3329 | Pink | 0.35 mΩ | 59 mV |
| 150A | 3108 | Gray | 0.36 mΩ | 50 mV |
| 175A | 3118 | Light brown | 0.31 mΩ | 51 mV |
| 200A | 3128 | Violet | 0.29 mΩ | 52 mV |
Voltage drop: apply 100% of the rated current(150A-200A：at 75% of the rated current).
