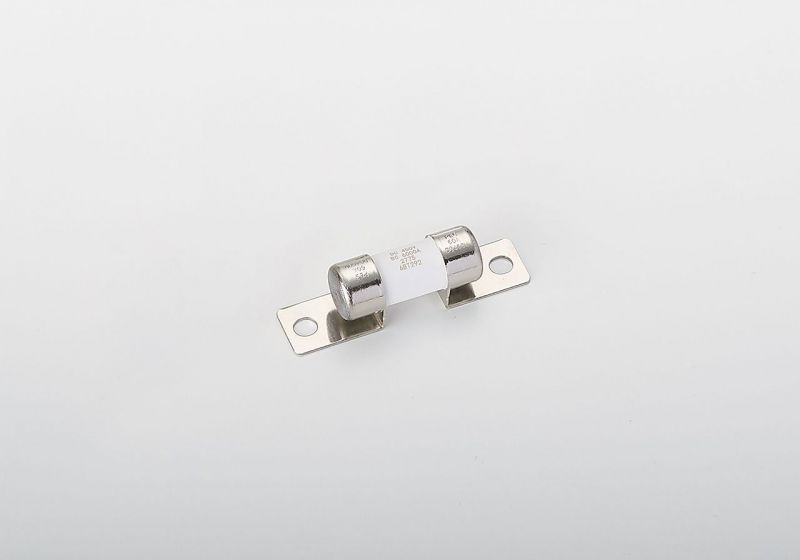

EVFC-φ15 DC450V[obsolete]
High Voltage automotive fuses with excellent durability properties
General Specification
- Rated Voltage
- DC450V
- Breaking Capacity
- 6000A
- Recommended Torque
- 4.5±1.0
- Operation Temperature
- -40℃ - 100℃
- Insertion Force
- -
- Extraction Force
- -
- Standard Packaging
- 120
Time-Current Characteristic:All ratings
| % of Ampere Rating(A) | Operating Time | |
| MIN | MAX | |
| 110% | 4 hrs. | - |
| 200% | 1 sec. | 300 sec. |
| 300% | 0.2 sec. | 30 sec. |
| 500% | 0.05 sec. | 1 sec. |
The fuse characteristic may change depending on the conditions of use.
Product Lineup
| Ampere Rating(A) | Part Number | Resistance Value | Voltage Drop |
| 50A | 2774 | 2 mΩ | 56 mV |
| 60A | 2775 | 1.6 mΩ | 57 mV |
