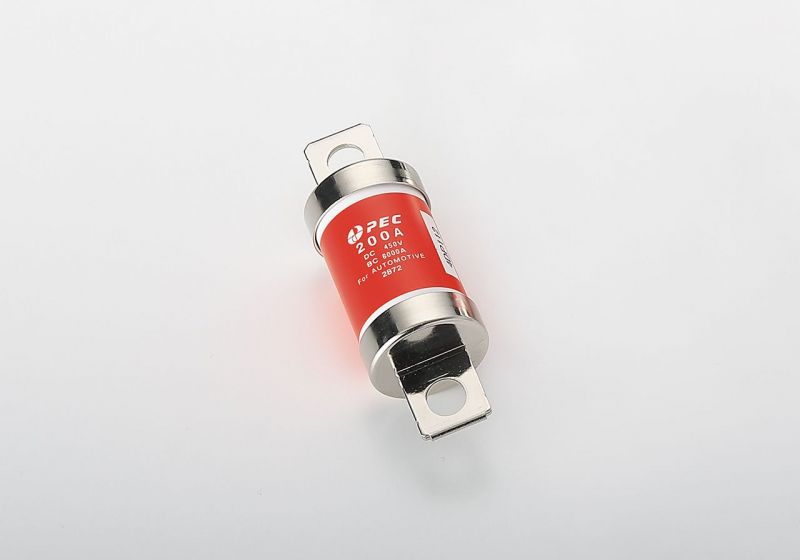

EVFC-φ30 DC450V[obsolete]
High Voltage automotive fuses with excellent durability properties
General Specification
- Rated Voltage
- DC450V
- Breaking Capacity
- 6000A
- Recommended Torque
- 12±1
- Operation Temperature
- -40℃ - 125℃
- Insertion Force
- -
- Extraction Force
- -
- Standard Packaging
- 80
Please contact us for the details of operating temperature.
Time-Current Characteristic:All ratings
| % of Ampere Rating(A) | Operating Time | |
| MIN | MAX | |
| 110% | 4 hrs. | - |
| 200% | 1 sec. | 300 sec. |
| 300% | 0.2 sec. | 30 sec. |
| 500% | 0.05 sec. | 1 sec. |
The fuse characteristic may change depending on the conditions of use.
Product Lineup
| Ampere Rating(A) | Part Number | Bolt Size | Diameter | Resistance Value | Voltage Drop |
| 150A | 2870 | M8 | 30 | 0.67 mΩ | 160 mV |
| 175A | 2871 | M8 | 30 | 0.56 mΩ | 170 mV |
| 200A | 2872 | M8 | 30 | 0.47 mΩ | 170 mV |
| 225A | 2873 | M8 | 30 | 0.40 mΩ | 170 mV |
| 250A | 2874 | M8 | 30 | 0.35 mΩ | 180 mV |
2 *In case a product other than the ones published in this document is desired, please contact us for details.
