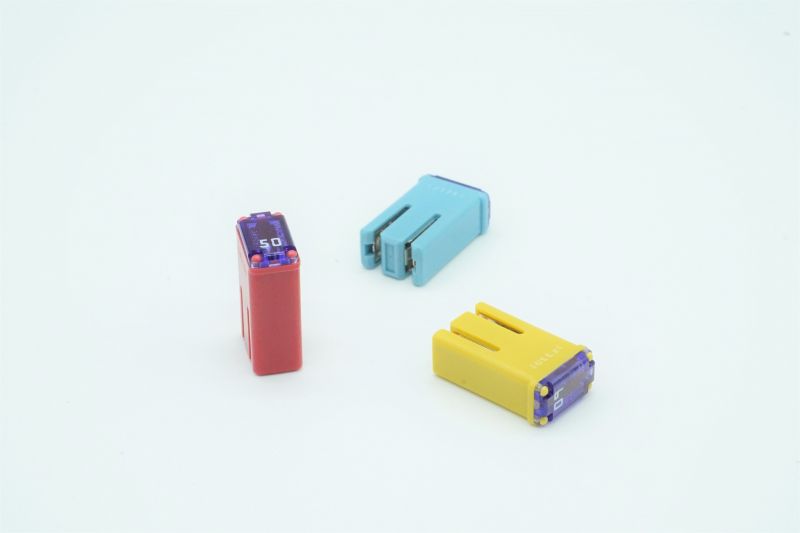

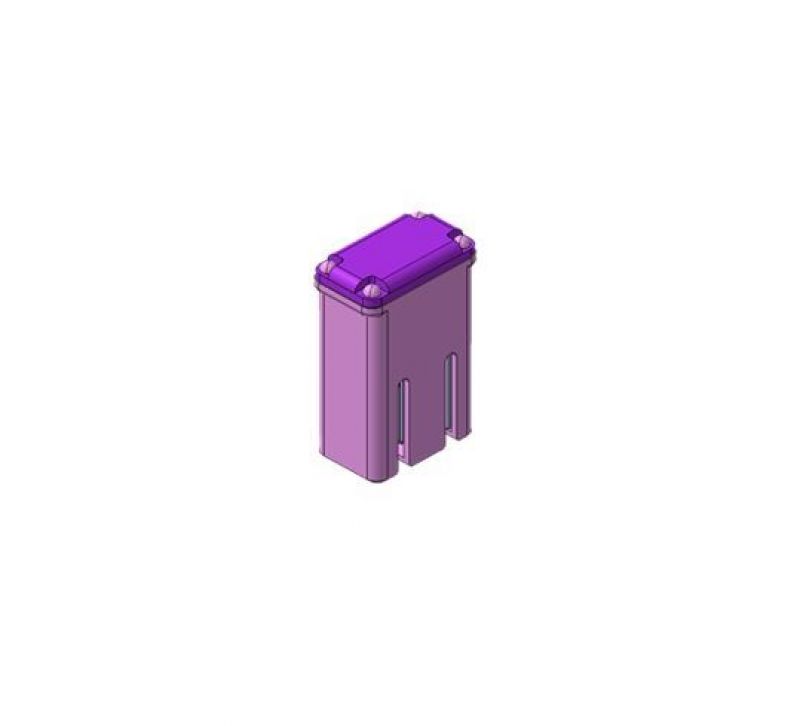

SBFC-MS2
Elimination the cover ribs of SBFC-MS improves space advantage
General Specification
- Rated Voltage
- DC32V
- Breaking Capacity
- 1000A
- Recommended Torque
- -
- Operation Temperature
- -40℃ - 120℃
- Insertion Force
- 44.1N and less
- Extraction Force
- 4.0 - 24.5N
- Standard Packaging
- 4,000
Please contact us for the details of operating temperature.
Time-Current Characteristic:All ratings
| % of Ampere Rating(A) | Operating Time | |
| MIN | MAX | |
| 110% | 100 hrs. | - | 135% | 60 sec. | 1800 sec. |
| 200% | 2 sec. | 60 sec. |
| 350% | 0.2 sec. | 7 sec. |
| 600% | 0.04 sec. | 1 sec. |
The fuse characteristic may change depending on the conditions of use.
Product Lineup
| Ampere Rating(A) | Part Number | Housing Colors | Resistance Value | Voltage Drop |
| 15A | 3290 | Gray | 5.3 mΩ | 94 mV |
| 20A | 3291 | Light blue | 3.9 mΩ | 93 mV |
| 25A | 3292 | White | 3.2 mΩ | 93 mV |
| 30A | 3293 | Pink | 2.2 mΩ | 80 mV |
| 35A | EL18 | Orange | 1.8 mΩ | 83 mV |
| 40A | 3294 | Green | 1.6 mΩ | 76 mV |
| 45A | EL19 | Brown | 1.4 mΩ | 85 mV |
| 50A | 3295 | Red | 1.3 mΩ | 84 mV |
| 55A | EL20 | Violet | 1.1 mΩ | 83 mV |
| 60A | 3296 | Yellow | 1.1 mΩ | 71 mV |
| 65A | EL21 | Blue | 0.9 mΩ | 84 mV |
