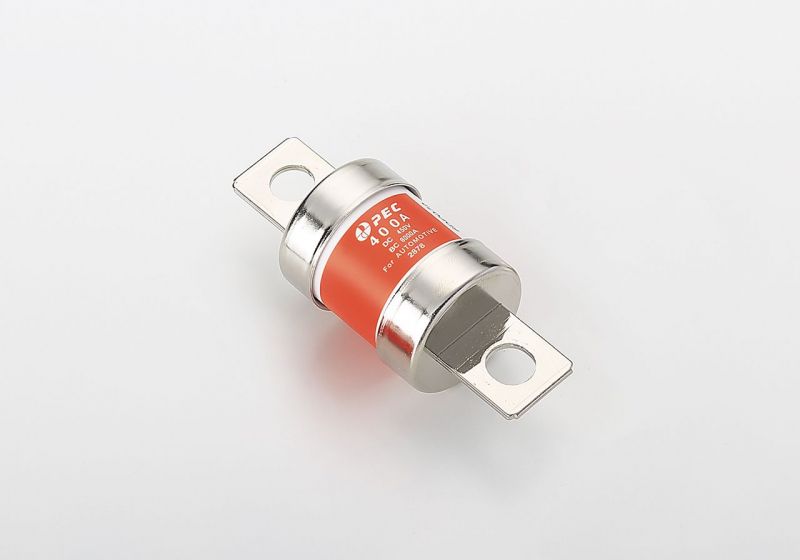

EVFC-φ38 DC450V[obsolete]
High Voltage automotive fuses with excellent durability properties
General Specification
- Rated Voltage
- DC450V
- Breaking Capacity
- 6000A
- Recommended Torque
- 16±1
- Operation Temperature
- -40℃ - 125℃
- Insertion Force
- -
- Extraction Force
- -
- Standard Packaging
- 40
Please contact us for the details of operating temperature.
Time-Current Characteristic:All ratings
| % of Ampere Rating(A) | Operating Time | |
| MIN | MAX | |
| 110% | 4 hrs. | - |
| 200% | 1 sec. | 300 sec. |
| 300% | 0.2 sec. | 30 sec. |
| 500% | 0.05 sec. | 1 sec. |
The fuse characteristic may change depending on the conditions of use.
Product Lineup
| Ampere Rating(A) | Part Number | Bolt Size | Diameter | Resistance Value | Voltage Drop |
| 300A | 2876 | M10 | 38 | 0.255 mΩ | 125 mV |
| 350A | 2877 | M10 | 38 | 0.195 mΩ | 135 mV |
| 400A | 2878 | M10 | 38 | 0.175 mΩ | 150 mV |
2 ＊In case a product other than the ones published in this document is desired, please contact us for details.
