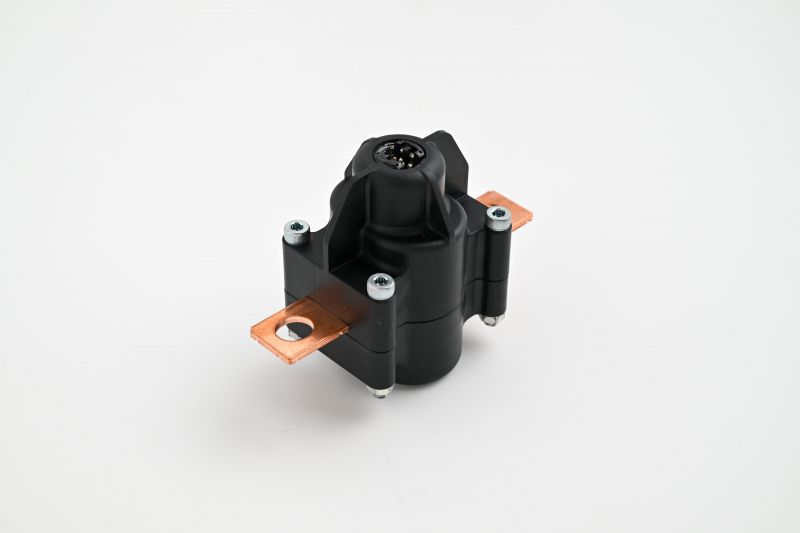

Pyro Switch DC 500V
Power Disconnect Device for Electric Automotive, eVTOL, Vessel, Stationary battery
In addition to our strong melting-fuse portfolio, PEC is developing pyroswitch (safety pyrofuse, circuit breaker) for the various demands of global automotive markets.
PEC’s pyrofuse instantly shuts off overcurrent and high voltage events in xEVs (BEV, PHV, HEV, FCV) equipped with a high power battery.
General Specification
- Rated Voltage
- DC500V
- Breaking Capacity
- 500V 15000A @20μH(2250J)
- Recommended Torque
- 6.0±1.0N･m (M6 Bolt)
- Operation Temperature
- -40℃ - 100℃
- Insertion Force
- -
- Extraction Force
- -
- Standard Packaging
- -
- Standard
- LV214
Please contact us for the details of specification.
